Heavy Duty Pallet Rack
Heavy duty pallet rack refers to a type of storage rack designed to hold and support heavier loads compared to standard racks. These racks are specifically engineered to withstand greater weight capacities and are commonly used in warehouses and industrial settings to store bulky and heavy items.
- High load-bearing capacity: MAX 5000 kg/layer
- Sturdy structure: It is constructed from Q235 high-strength cold-rolled steel
- Versatility: This kind of racking can be customized to meet different storage requirements, including various heights, depths, and widths
- Long-lasting durability: Pallet racking often has a long lifespan, and their surfaces are pickled to be more durable
Palletised or
heavy loads
5 years
warranty
Manual
delivery loads
*Note: The specifications, sizes, colors and surface treatments of the products can be customized! Please contact us if you need more style.
| Material | Cold-rolled Steel Q235B |
| Product Size | Length: 2300 / 2500 / 2700 / 3000 / 3300 / 3600 / 3900 mm Width: 900 / 1000 / 1100 / 1200 mm Height: 2000-6500 mm |
| Thickness | column: 1.5 mm, 2.0 mm |
| Load capacity | 800-5000 kg per layer |
| Layers | 2-5 adjustable layers (can be custom made) |
| Color | RAL color; As per customer’s requirement |
| Surface | Electrostatic spray surface |
| Feature | Anti-rust, Corrosion-protection |
| Guarantee Period | 5 years warranty |
| Remark | OEM & ODM accepted |
| Relevant Certificate | CE, ISO |
| Use Area | Warehouse, factory, storage place |
| Structure | Knock down structure, easy assembling, convenient for delivery |
| Function | storage goods, rack, storage |
| Product Range | warehouse, storage place |
Q: Supposing your warehouse is high, how to make a solution to make full use of the space?
A: Making this storage solution, you only need to provide the warehouse space measurement, loading capacity per square meter, products, and the quantity of floors you want, we will make the drawing and send it back to you.
Our Company’s market cover 100+ countries, with 5000+ project experience. heda shelf supply one-stop solutions and free layout design. We have many successful case, such as Multi-level Mezzanine system in Thailand, 1000 Sqm New Mezzanine Floor Project With Lift, Multi-level Mezzanine In UAE Is Installing and so on, learn more, pls contact heda shelves.
* Optional Shelves Steel, Wooden, Steel Mesh, Pallet Etc.
* Prevent Goods from Falling
* Easy to Assemble
* Option Size
* Heavy Load
* High Quality Cold Rolled Steel Q235b
* Double C Beam
* Pickling Phosphating

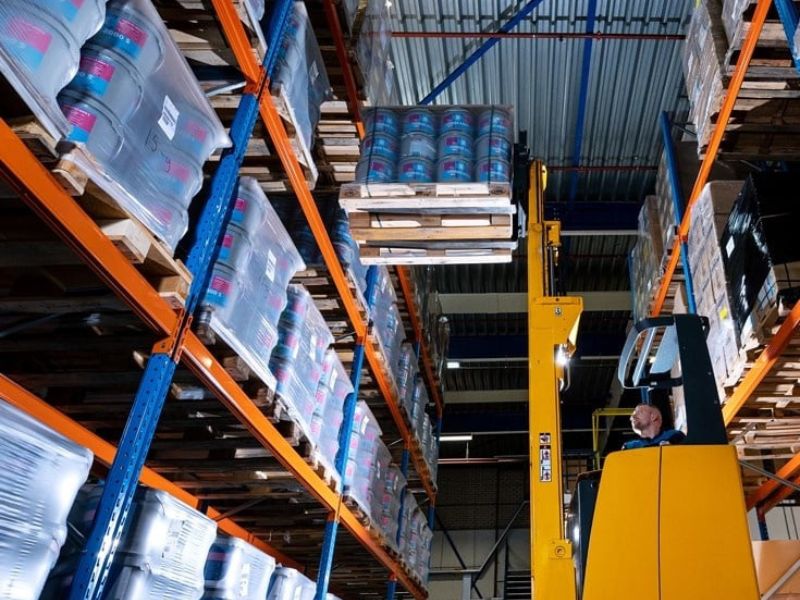

* Using Forklifts to Store and Pick Up Goods, Easy for Cooperation
get a quote
Frequently Asked Questions
What are selective pallet racks used for?
High SKU Variety: Selective pallet racking is ideal for operations that manage a large number of different shape and size inventory.
Stock Keeping Units (SKUs). Its design allows for easy access to any pallet without needing to move others, making it suitable for environments with diverse product types.
Quick Access: This racking system enables rapid loading and unloading of pallets, enhancing operational efficiency. It is particularly beneficial for warehouses that require frequent access to various items.
Versatility: Selective racking can accommodate various pallet sizes and types, including full pallets, partial pallets, and cases. This flexibility makes it suitable for different industries and storage needs.
Inventory Management: The system supports effective inventory management practices, including First-In, First-Out (FIFO) and Last-In, First-Out (LIFO) methods, depending on the configuration used.
What is a pallet rack system?
Pallet racking system is a structured storage solution designed to hold heavy-duty products on the pallets in a warehouse or distribution center. It consists of vertical upright frames and horizontal beams that create multiple levels for storing pallets, allowing for efficient use of vertical space in flexible storage.
How many pallets are on a rack?
The number of pallets that can be stored on a pallet rack system depends on several factors. Here are some key considerations:
Typical Storage Capacities
Selective Pallet Racking:
This is the most common type of pallet racking, allowing direct access to each pallet.
For standard configurations, a typical selective pallet rack can hold Two UK Pallets (1200 x 1000 mm) wide per beam level or three Euro pallets (1200 x 800 mm) wide, depending on the depth of the rack (900 mm for UK pallets and 1100 mm for Euro pallets).
Height and Levels:
Pallet racks can be configured to several levels, often ranging from 2 to 6 levels or more, depending on the warehouse height and the type of forklift used. For example, a standard rack height can reach up to 6000 mm (about 20 feet), allowing for multiple tiers of pallets.
Pallet Flow and Other Systems:
In high-density systems like pallet flow racking, the capacity can be significantly higher. For instance, pallet flow systems can hold up to 20 pallets deep in one lane, depending on the design. Other systems, like double-deep racking, can store two pallets back-to-back, doubling the capacity in the same footprint.
What is standard selective pallet racking size?
Standard selective pallet racking systems have specific dimensions that are designed to optimize storage while ensuring safety and accessibility. The Size Depends on the warehouse layout and racking system layers.
General Dimensions
Height: Standard selective pallet racks can range from 8 feet (2.4 meters) to 30 feet (9.1 meters) tall, depending on the warehouse requirements and the type of forklift used. However, most systems are commonly found between 12 to 20 feet (3.7 to 6.1 meters) in height.
Depth: The depth of the rack is typically 36 inches (914 mm) to 48 inches (1219 mm). A common depth is 42 inches (1067 mm), which allows for efficient storage of standard pallets.
Width: The width of the rack can vary, but the most common beam lengths are 96 inches (2438 mm) and 120 inches (3048 mm), allowing for the storage of one or two pallets side by side, depending on the pallet size.
Aisle Width: The aisle width required for selective pallet racking typically ranges from 10 to 12 feet (3 to 3.7 meters) for standard counterbalanced forklifts, allowing sufficient space for maneuvering and accessing pallets.
Load Capacity: Each beam level can generally support loads ranging from 2,000 to 5,000 pounds (900 to 2,300 kg), depending on the design and materials used in the racking system.
How much weight can a selective pallet racking hold?
General Capacity: HEDA Selective pallet racks (Heavy Duty Racking) can support loads ranging from 1000 kg (approximately 2,200 lbs) to 5 tons (about 10,000 pounds) per level, depending on the racking layer, and racking size.
Beam Capacity: The load capacity of the beams is a critical factor. For example, two pallets weighing 1,500 lbs each are placed on a pair of 3M beams.
Frame and Beam Design: The overall load capacity is influenced by the design of both the frames and beams, including the thickness of the steel and the spacing of the beams. We provide specific load capacity by Box Beam, a high-capacity structural.
What is standard height of selective pallet racking?
The standard height of selective pallet racking systems typically ranges from 8 feet (approximately 2.4 meters) to 30 feet (about 9.1 meters). While most installations do not exceed this height due to safety and stability concerns, it is common to see configurations around 12 to 20 feet (3.7 to 6.1 meters) in many warehouses.
