Mezzanine Racking System

At HEDA SHELVES, we specialize in providing high-quality, customizable Mezzanine Floor Solutions that enhance the presentation of your inventory. Whether you’re looking for warehouse or supermarket storage mezzanine for bulk storage, fast picking,and retail display. Our R&D Team ensures your storage space stands out. With attention to detail and innovative design ideas, our mezzanine shelving system will leave a lasting impression.

Mezzanine Racking Dimension

1. Features

1) Beam capacity 800-1000KG

2) Different sizes, various specifications, and colors are available according to your different needs.

3) Maximizes space utility ratio while retaining optimum product accessibility.

4) Strength and rigidity prevent compression damage to goods.

5) The bottom level of pallets can be stored on the floor, lowering structure costs.

2. Material:

High-grade Q235B Cold Rolled Steel

3. Surface Treatment:

Acid-washing, High-quality Powder Coating Finishing.

4. Load Capacity & Dimension:

1) Loading capacity: 500-1000 kgs / SQM.

2) Height: Depend on warehouse height

3) Depth:  OEM/ODM

4) Length: OEM

Special layouts are also available for specific storage needs.

5. Main Parts Specs(mm):

1) Upright: custom

2) Beams: custom

3) Horizontal & diagonal bracings: custom

4) Upright Footplates: custom

5) Safety locking pins



6) Bolts & nuts



7) Anchors and all necessary components.

6. Certificates.

CE certified, ISO9001,

7. Quick Delivery.

Within 15 workdays (negotiable), according to quantity

Product Modula Show

Types of Mezzanine Floors

mezzanine floor platform

Mezzanine Floor

Offering scope for an entire floor to be added to your space, you will often see these in retail units and warehouses needing stock management and extra space.

industrial mezzanine

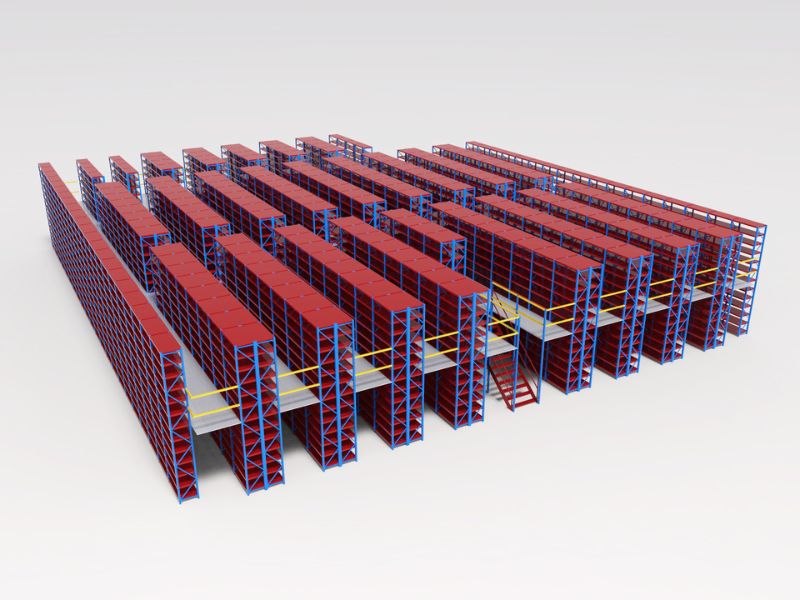

Multi-Tiered Mezzanine

Perfect for warehouses with high-density pick locations, multiple product lines, and pallet-racking, and small item picks must be under one roof.

construction material holder racking system

Rack/Shelving-Support Mezzanine

Our rack-support mazzanine is supported by a cantilever or pallet racking.

catwalk mezzanine

Catwalk Mezzanine

Offering scope for an entire floor to be added to your space, you will often see these in retail units and warehouses needing stock management and extra space.

Why Choose HEDA SHELVES Mezzanine?

Mezzanine Rack is more than just storage Equipment—it’s an essential part of creating a memorable experience. At HEDA SHELVES, we offer a variety of MEZZANINE System options to suit every need, from industrial storage for heavy duty inventory to retail supermarket showcase for Multi-SKU Product.

Customizable Options: Every mezzanine rack system can be tailored to your specific requirements, whether it’s the size, color, or layout. Our custom solutions allow you to bring your vision with CAD & 3D Rendering.

Flexible & Versatility: For Warehouse and Shop use, our mezzanine rack options offer an extra touch of sophistication. Perfect for special occasions, high turnover storage, or high-end products, our mezzanine rack can load more with high efficiency picking rack.

Creative Ideas: We offer Tailored-made Mezzanine Rack ideas to help you increase load capacity and space optimization. From industrial needs to supermarket showcase designs, we can help make your business growth with high efficiency storage solution.

Get Lastest Quote

Contact us to get a free quote and more expertise about Heavy Duty Racking. Your project will meet the right solution with HEDA Shelves.

Custom Your Heavy Duty Racking In 3 Easy Steps

At HEDA Shelves, We turn complex Into Simple! Follow the following 3 steps to start today!

Tell Us What you Need

Tell us as specific as possible of your needs, provide the drawing, reference picture and share your idea.

Get Your Solutions & Quote

We will work on the best solution according to your requirements and drawing, the specific quote will be provided within 24 hours.

Approve For Massive Production

We will start mass production after getting your approval and deposit, Then we will handle the shipment.

Learn More From

Frequently Asked Questions

For more questions, please consult online customer service.

*Note: The specifications, sizes, colors and surface treatments of the products can be customized!

How does it work?

Mezzanine floors system

Mezzanine floors is a raised platform constructed within a warehouse or industrial space to create additional floor space for storage, work areas, or offices. Mezzanine racks are typically installed between the floor and ceiling of a building, effectively utilizing the vertical space available.

Mezzanine Floors can double and even triple surface area, increasing the usable surface in height by one or two levels inside a warehouse.

Industrial mezzanines come in various types, each suited to specific applications and environments. Here are some common types:

Freestanding (Structural Steel) Mezzanines: Built with heavy-duty steel columns, these mezzanines are independent structures within a facility and can be placed anywhere, offering high load capacities and flexibility for storage or workspace.

Rack-Supported Mezzanines: Integrated directly with pallet racking systems, these mezzanines maximize storage space and are ideal for warehouses needing multi-level storage for lightweight items or inventory organization.

Shelving-Supported Mezzanines: Built on top of existing shelving units, this type is best for lightweight goods or picking applications, often used in retail or parts storage areas for efficient use of vertical space.

Catwalk (or Walkway) Mezzanines: These are narrow, elevated pathways that provide access to high storage areas or equipment, commonly used in environments with tall storage racks, such as warehouses and manufacturing plants.

Work Platform Mezzanines: Designed as additional floor space for workstations, equipment, or assembly lines, these mezzanines offer flexibility for various industrial and manufacturing operations, providing extra work or storage areas.

structural steel mezzanine
Multi-layer Mezzanine
Mezzanine Platform
Catwalk Mezzanine Racking

Advantages and features for Mezzanine floos system:

The main advantages of Mezzanine floors racking systems are building an additional storage platform and efficient use of vertical space.

  • Space optimization above 80%.
  • Increased surface area of warehouses or stores
  • Great variety of floor sizes and types
  • Paired with elevators or slides for better manual picking
  • Quick and simple assembly
  • Low maintenance and low assembly costs make this system one of the most cost-effective systems.
  • Structure compatible with other storage systems.
  • Provides maximum performance, and utilisation can be over 80% of the available space.
  • Enables clearly arranged logistics management with full control of inventories as well as traffic and service flow.
  • Easily assembled modular structure.
  • Includes various accessories to increase safety.
  • Maximisation of space
